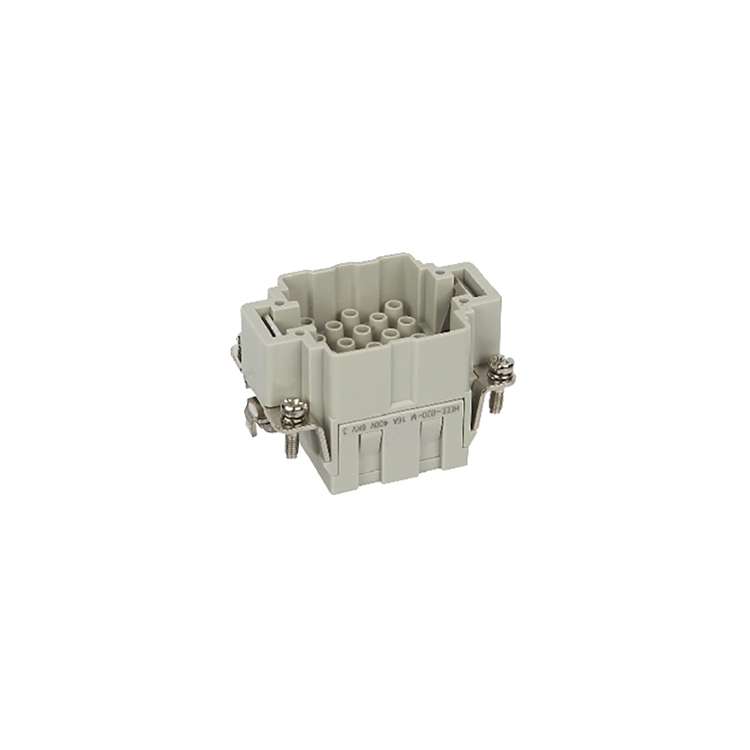

SO-HEEE-020-MC
產品圖紙
類型：公插芯
是否需要額外訂購冷壓針：是
產品認證：
產品圖紙
| 插芯 | 外殼尺寸：匹配6B外殼 | |
| 接插件針數 | Number Of Contacts | 20 |
| －額定電流 | －Rated Current | 16A |
| －相對額定電壓 | －Rated Voltage | 500V |
| －相間額定電壓 | ||
| －額定脈沖電壓 | －Rated Impulse Voltage | 6KV |
| －污染程度 | －Pollution Degree | 3 |
| －或 | －Or | |
| －依據UL/CSA額定電壓 | －Rated Voltage Acc.to Ul CSA | 600V |
| 絕緣電阻 | Insulation Resistance | ≥1010Ω |
| 材料 | Material | 聚碳酸酯 Polycarbonate |
| 工作溫度范圍 | Limiting Temperatures | -40℃...+125℃ |
| 依據UL94阻燃等級 | Flammability Acc. To UL94 | V0 |
| 可拔插次數 | MecHEnical Working Life-mating Cycles | ≥500 |
| 插針 | ||
| 材料 | Material | 銅合金 Copper Alloy |
| 表面處理 | Surface | 鍍銀/鍍金 |
| 接觸電阻 | Contact Resistance | ≤1mΩ |
| 冷壓連接 | ||
| －導線規格 | Wire Gauge | 0.14-4.0mm2 |
| －AWG | AWG | 26-12 |
| －擰緊力矩 | Tightening Torque | 7.5Nm |
