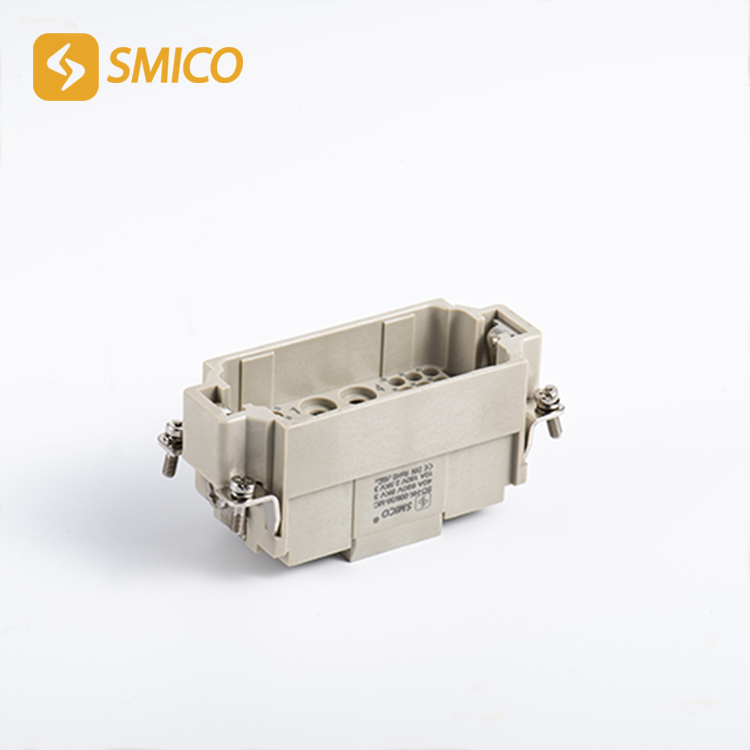

SO-HK-006/36-MC
Download
Part：Inserts
Product Certification：CE,UL,CUL,ROHS,DMT
Download
Product parameters
| Inserts | |
| Number of contacts | 6/36+PE |
| Electrical data acc. to EN 61 984 | |
| Power area | |
| ---Rated current | 40A |
| ---Rated voltage | 690V |
| ---Rated impulse voltage | 8kV |
| ---Pollution degree | 3 |
| Signal area | |
| ---Rated current | 10A |
| ---Rated voltage | 160V |
| ---Rated impulse voltage | 2.5kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 10A 250V 4kV 2 |
| Rated voltage acc. to UL | 600/300V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Power contacts | |
| ---Material | copper alloy |
| ---Surface | hard-silver plated |
| hard-gold plated | |
| ---Contact resistance | ≤1mΩ |
| ---Crimp terminal | |
| ------mm2 | 1.5-6mm2 |
| ------AWG | 16-10 |
| ---Max. insulation diameter | 5mm |
| Signal contacts | |
| ---Material | copper alloy |
| ---Surface | hard-silver plated |
| hard-gold plated | |
| ---Contact resistance | ≤3mΩ |
| ---Crimp terminal | |
| ------mm2 | 0.14-2.5mm2 |
| ------AWG | 26-14 |
